Rockchip RK3588 cloud solution application PCBA

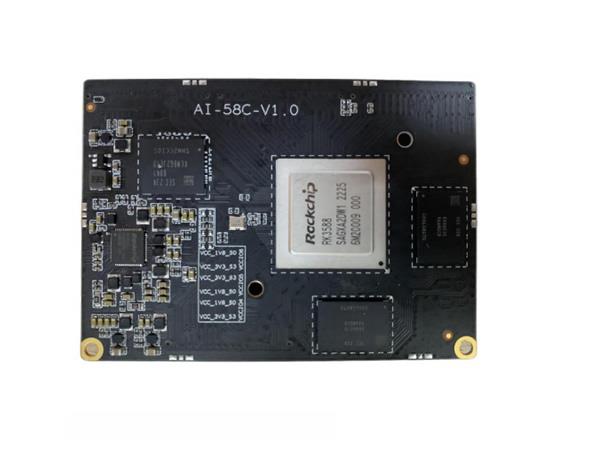

YNH-58C for core board Rockchip RK3588 New first generation flag ship eight cores 64 position controller, maximum available 32GB,

support 8K screen resolution; support multi-hardware,1000 trillion wires, WiFi6, 5G/4G Supports multiple types of operation systems;

 Suitable for use in ARM PC, advanced calculations, clothing devices, intelligent NVR, etc.

RK3588 is Rockchip All-new first generation flag ship AloT core piece, use of 8nm LP system;

eight cores 64th place CPU, main power 2.4GHz;

assembly ARM Mali-G610 MP4 four cores GPU, internal AI accelerator NPU, available 6Tops Arithmetic ability,

supporting mainstream depth learning framework, performance-enhancing RK3588,

possible to use AI in each category, further improved performance expression.

Support 8K@60fps H.265/VP9 resolution 8K@30fps H.265/H.264 resolution, support same resolution,

 best possible 32 routes 1080P@30fps resolution 16 routes 1080P@30fps;

strong screen resolution; 8K high-definition presentation, picture quality details.

HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 Multi-route video output HDMI RX2.0/MIPI-CSI/DVP Visual video input,

support multi-route 8K video video output 4K The image is imported,

the best possible view is seven screens; a collection of 48MP ISP with HDR&3DNR, the support for two MIPI-CSI images is imported.

The maximum available capacity is 32GB, which exceeds the existing capacity limit,

increases the speed, increases the demand for additional capacity, and exceeds the existing capacity limit.

Completion of PCle3.0/GMAC/SDIO3.0/USB3.0, possible to use, WiFi6/Blue, 5G/4G LTE, higher speed.

Supports multiple PCle3.0/SATA3.0 SSD/HDD large-capacity configurations, and supports TB ultra-high capacity.

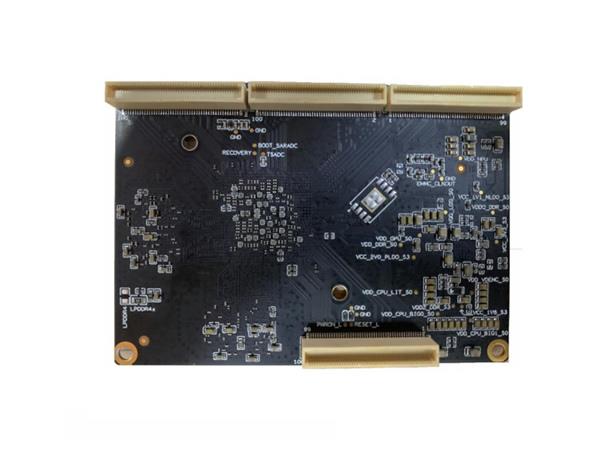

The core plate is equipped with 4 pieces of 100P connectors,

 the bottom plate can be combined with a complete set of high-performance ITX main plates, and the expansion and connection parts can be changed,

 and can be used directly for various intelligent products, including acceleration products.

Supports Android 12.0, Ubuntu Server version, Debian11, Buildroot; Supports RTLinux inner core, excellent performance in practice;

Supports Kirin, security, etc. national operation system;

Supports UEFI Movement: A safety-defined system environment provided by the industry.

Suitable for various applications such as computer, cloud computing, ARM PC,

 intelligent NVR, intelligent seat, wisdom screen, AR/VR, high-end plate, multi-view image head, intelligent car, etc.

2. Product  Function:


1, CPU equipped with 4 pieces Cortex-A76 and 4 pieces Cortex-A55 and independent NEON processor, main frequency 2.4GHz, NPU high performance 6Tops.


2、You can communicate with the user both inside and outside the country, and the efficiency is high.


3. Support rich RAM/ROM types, support DDR3 and DDR4/4X full-circuit ECC, support SPI NOR/SPI Nand/eMMC,

SPI Flash+eMMC dual ROM coexistence design, fully differentiated dual system design demand.


4, support the import access, support the three screens, support multiple screens, support the exit and exit ports;

support the international interface; Connector, PCIE2.1, PCIE3.0, maximum 3-way SATA3.0, 2-way USB2.0, 2-way USB3.0, etc.


5. Equipped with excellent labor control technology, small heat reduction, and strong environmental adaptability.


6. High quality ratio, low quality, suitable for use in small and medium scale models.
