Every electronic device, from the smartphone in your pocket to the satellite orbiting Earth, relies on a printed circuit board (PCB) to function. But what makes one PCB different from another? The answer lies in the material.
PCB materials are the unsung heroes of modern electronics. They determine how well a device performs under stress, how efficiently it dissipates heat, and even how long it lasts. Choosing the right material is both a technical and a strategic decision.
FR4, the industry standard, is a reliable workhorse for most applications. But when the stakes are higher — think aerospace, military, or medical devices — engineers turn to advanced materials like polyimide. Each material has its strengths and limitations, and understanding these is key to designing PCBs that meet both current and future demands.
This article dives into the world of PCB materials, exploring the properties, applications, and trade-offs of FR4, polyimide, and beyond. Whether you’re designing a high-frequency RF circuit or a rugged industrial control system, the insights here will help you make informed decisions and push the boundaries of what’s possible.
At the heart of every electronic device lies a printed circuit board (PCB), and the material it’s made from is far more than just a passive substrate. PCB materials are the foundation upon which modern electronics are built, and influence everything from thermal performance to signal integrity.
Think of a PCB material as the canvas for an artist. The quality of the canvas determines how well the final masterpiece holds up over time. In electronics, the “masterpiece” is the circuit design, and the “canvas” is the PCB material.
Different applications demand different properties. For instance, a smartphone PCB needs to be lightweight and cost-effective, while a PCB for a satellite must withstand extreme temperatures and radiation. The choice of material — whether FR4, polyimide, or something more specialized — can make or break the performance of the final product.
Key considerations when selecting a PCB material include:
- Thermal Performance: How well the material dissipates heat.
- Mechanical Strength: Its ability to withstand physical stress.
- Electrical Properties: Factors like dielectric constant and loss tangent.
- Cost: Balancing performance with budget constraints.
Understanding these factors is the first step toward making informed decisions. Let’s dive deeper into the most common PCB materials and their unique characteristics.
FR4: The Workhorse of PCB Materials
When it comes to PCB materials, FR4 is the undisputed champion. It’s the go-to choice for a wide range of applications, from consumer electronics to industrial controls. But what makes FR4 so popular, and where does it fall short?

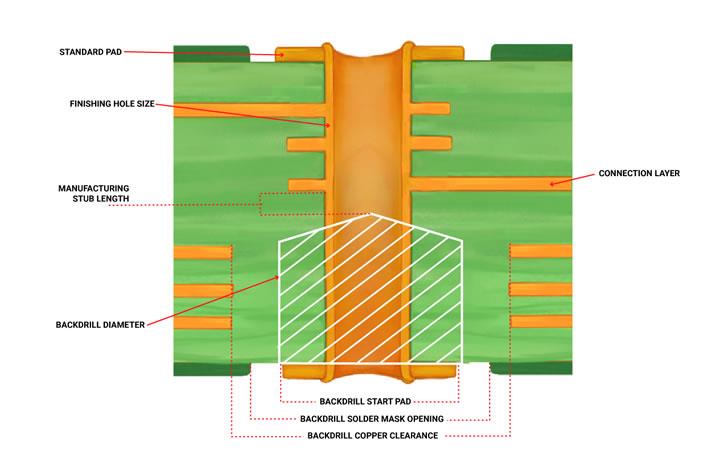

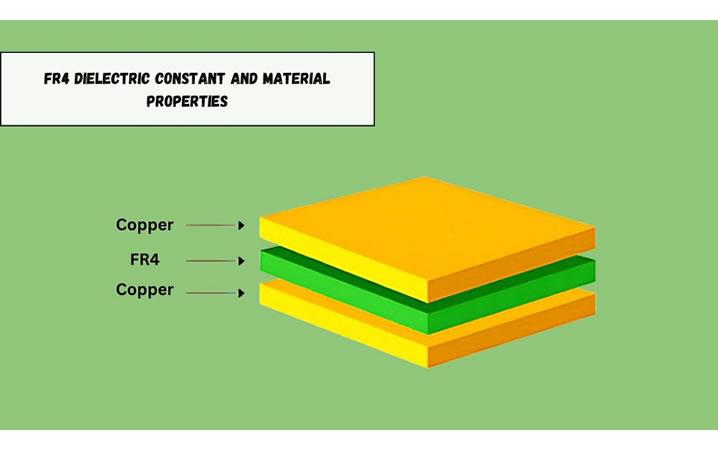

What is FR4?
FR4 is a composite material made of woven fiberglass cloth bonded with an epoxy resin. The “FR” stands for flame retardant, and the “4” refers to the specific grade of the material. It’s affordable, readily available, and easy to work with, which makes it a favorite among engineers.
Strengths of FR4
- Electrical Insulation: FR4 provides excellent electrical insulation, ensuring reliable performance in most applications.
- Mechanical Strength: Its fiberglass core gives it good rigidity and durability, making it suitable for a variety of environments.
- Cost-Effectiveness: FR4 is relatively inexpensive, which is a major advantage for high-volume production.
Limitations of FR4
- Thermal Performance: FR4 can withstand temperatures up to around 130°C, which is sufficient for many applications but falls short in high-temperature environments.
- Flexibility: It’s a rigid material, making it unsuitable for flexible or bendable PCBs.
- Signal Loss: At high frequencies, FR4’s dielectric properties can lead to signal loss, limiting its use in RF and microwave applications.
-
Applications of FR4
FR4 is the backbone of the electronics industry. You’ll find it in everything from household appliances to automotive control systems. Its versatility and affordability make it an ideal choice for projects where cost and reliability are paramount.
However, as technology advances and applications become more demanding, FR4’s limitations are becoming more apparent. This has led to the rise of alternative materials like polyimide, which we’ll explore next.
Polyimide: The High-Performance Alternative
When FR4 isn’t enough, engineers turn to polyimide. This high-performance PCB material is a game-changer for applications that demand exceptional thermal stability, flexibility, and reliability. But with great performance comes greater cost and complexity. Let’s break it down.
Strengths of Polyimide
Polyimide is a synthetic polymer known for its high heat resistance and mechanical strength. Unlike FR4, which is rigid, polyimide can be flexible, making it ideal for rigid-flex PCBs. Its ability to withstand extreme temperatures — up to 260°C — sets it apart from traditional materials. This makes it a top choice for industries where reliability under harsh conditions is critical.
One of polyimide’s standout features is its thermal stability. It excels in high-temperature environments, making it indispensable for aerospace, military, and automotive applications. For example, PCBs in satellites, missiles, and aircraft must endure extreme temperatures and vibrations, and polyimide delivers where other materials fail. Additionally, its flexibility enables innovative designs, such as wearable electronics and compact medical devices. This versatility opens up new possibilities for engineers pushing the boundaries of technology.
Limitations of Polyimide
Its cost is significantly higher than FR4, which can be a barrier for cost-sensitive projects. Manufacturing with polyimide also requires specialized equipment and expertise, adding to production time and expenses. Another consideration is its tendency to absorb moisture, which can affect its electrical properties in humid conditions. Despite these limitations, polyimide’s unique properties make it indispensable for cutting-edge technologies.
Applications of Polyimide
In the medical field, polyimide’s flexibility and biocompatibility make it ideal for implantable devices and diagnostic equipment. In automotive applications, high-temperature engine control units and sensors benefit from its thermal stability. While polyimide isn’t a one-size-fits-all solution, its ability to meet the demands of extreme environments and innovative designs ensures its place as a premium PCB material.
Beyond FR4 and Polyimide: Specialized PCB Materials
While FR4 and polyimide cover a wide range of applications, some projects demand even more specialized solutions. Enter ceramic PCBs, Rogers materials, and metal-core PCBs — each designed to address specific challenges in thermal management, high-frequency performance, and durability.
Ceramic PCBs
Ceramic PCBs are the gold standard for high thermal conductivity and stability. Made from materials like aluminum oxide (Al2O3) or aluminum nitride (AlN), they excel in applications where heat dissipation is critical.
For example, LED lighting and power electronics generate significant heat, and ceramic PCBs help manage this efficiently. Their thermal conductivity far surpasses that of FR4 or polyimide, ensuring reliable performance even under extreme conditions. However, ceramic PCBs are expensive and brittle, so they are unsuitable for flexible and cost-sensitive designs.
Rogers Materials
When it comes to high-frequency applications, Rogers materials are the go-to choice. These specialized laminates are designed to minimize signal loss and maintain consistent electrical properties at microwave and RF frequencies.
Rogers materials are widely used in telecommunications, radar systems, and wireless devices. Their low dielectric loss and stable performance make them ideal for circuits operating at GHz frequencies. The trade-off? Higher cost and more complex manufacturing processes compared to standard materials like FR4.
Metal-Core PCBs
Metal-core PCBs (MCPCBs) are built for one thing: heat dissipation. These boards feature a metal base — typically aluminum or copper — that acts as a heat sink, drawing heat away from critical components.
Automotive and power electronics are prime examples of where MCPCBs shine. In electric vehicles, for instance, power converters and motor controllers generate substantial heat, and MCPCBs help keep temperatures in check. While they’re not as versatile as FR4 or polyimide, their thermal performance makes them invaluable in specific use cases.
Strategic Considerations for Selecting PCB Materials
Choosing the right PCB material is about aligning your selection with the broader goals of your project. From thermal performance to cost constraints, every decision has implications for design, manufacturing, and long-term reliability. Here’s what engineers need to consider.Application Requirements
The first step in selecting a PCB material is understanding the demands of your application. For example, high-frequency designs, such as RF and microwave circuits, require materials with low dielectric loss and stable electrical properties. Rogers materials are often the best choice here.
On the other hand, if your project involves high-temperature environments — like aerospace or automotive systems — thermal stability becomes paramount. Polyimide or ceramic PCBs might be the way to go. By identifying the key requirements upfront, you can narrow down your options and avoid costly redesigns later.
Cost vs. Performance
Budget is always a factor, even in high-stakes industries. FR4 is the most cost-effective option, making it ideal for consumer electronics and other price-sensitive applications. However, cutting corners on material selection can lead to performance issues or premature failure.
For high-reliability applications, the higher cost of materials like polyimide or Rogers is often justified. The key is to strike a balance between performance and budget, ensuring that your material choice aligns with the project’s priorities.
Manufacturing Complexity
Some materials are easier to work with than others. FR4, for instance, is straightforward to manufacture and widely supported by PCB fabricators. Polyimide, while offering superior performance, requires specialized equipment and expertise, which can increase production time and costs.
Before committing to a material, consider its impact on the manufacturing process. Will it require additional steps or resources? Are there fabricators with the necessary capabilities? These questions can help you avoid bottlenecks and ensure a smooth production cycle.
Future-Proofing Your Design
Technology evolves rapidly, and your PCB material should be able to keep up. Selecting a material that meets both current and future needs can save time and money down the line.
For example, if you’re designing a product that may need to handle higher temperatures or frequencies in the future, opting for a more advanced material like polyimide or Rogers might be a wise investment. Futureproofing isn’t just about anticipating changes — it’s about building flexibility into your design.
